Interconnection of 132/11 Kv Asayel, Forsan & Schools Substations with 132 Kv Network in Dubai

Project Overview

Bin Omairah's scope of works under this Project is to perform detailed engineering and design, procure, supply and deliver all materials and equipment to Worksite, construct, install, test commission and put into service:

Project Portion I:
Construction (Loop-In-Loop-Out) of Two (2) Existing 132Kv U/G Cable Between FORSAN132/11Kv S/S to HRSR 400/132Kv S/S & FORSAN 132/11Kv S/S to KHILROAD 132/11Kv S/S.

Project Portion II:
Construction (Loop-In-Loop-Out) of Two (2) Existing 132Kv U/G Cable Between ASAYEL132/11Kv S/S to HRSR 400/132Kv S/S & ASAYEL 132/11kV S/S to HUMANCTY 132/11Kv S/S.

Project Portion III:

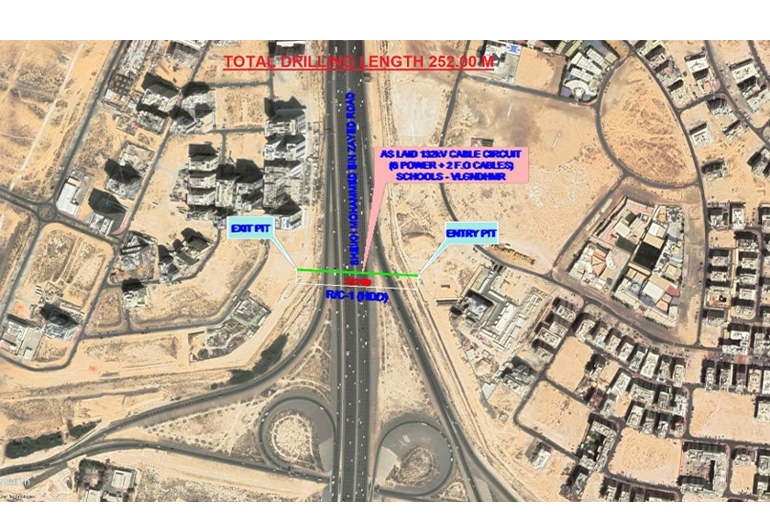

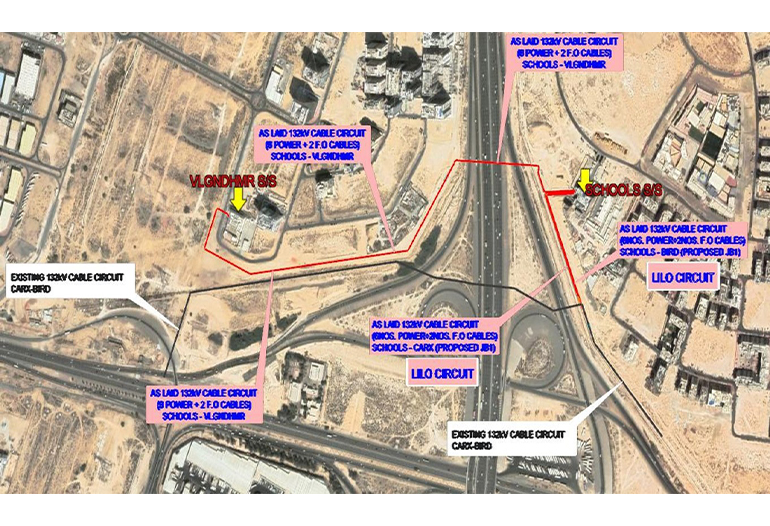

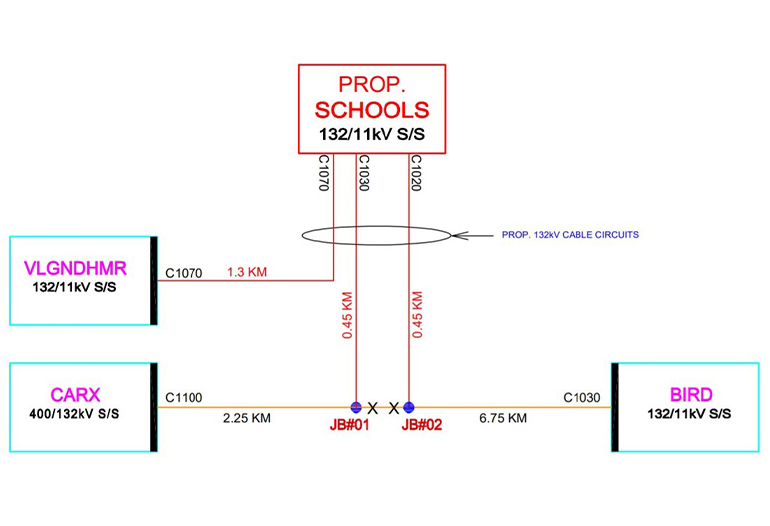

Construction (Loop-In-Loop-Out) of Two (2) Existing 132Kv U/G Cable Between SCHOOLS 132/11Kv S/S to CARX 400/132 kV S/S & SCHOOLS 132/11Kv S/S to BIRD 132/11Kv S/S and also one(1) END - END direct circuit from SCHOOLS 132/11Kv S/S to VLGNDHMR 132/11Kv S/S.
